Add a Dimension to a Dimension Group

Step 1.

Click one of the following buttons:

  • Distance Between

  • Angle Between

  • Symmetric Diameter

  • Coordinate Dimension

Step 2.

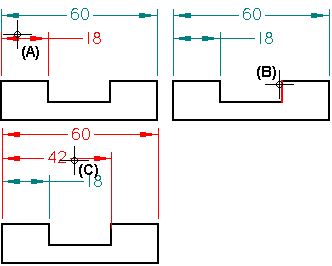

Click a dimension (A) in a dimension group.

Step 3.

Click an element (B) you want to measure.

Step 4.

Click where you want the dimension (C). This adds the dimension to the dimension group.
