Angle command

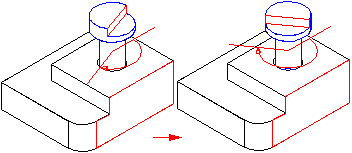

Applies an angle relationship between two faces or two edges of two parts in an assembly, if an axial align relationship has been applied. This relationship is typically used to allow a part to pivot about an axial align in order to connect between two edges.  You can edit the angular value of the relationship to rotate the part in the assembly.
