Replace part overview

Assembly replace part

Replace part overview

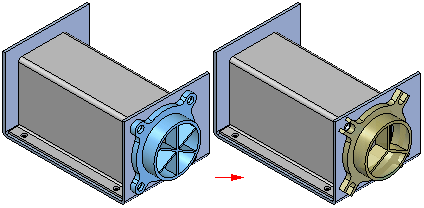

Replace parts in assembly has been enhanced to support the following:

  • Replace part (as in previous versions)

  • Replace part with standard part

  • Replace part with new part

  • Replace part with copy

  • Replace multiple occurrences—You can select multiple similar or dissimilar parts. The Replace command remains available in all cases.

  • Replace in subassemblies—You can select a part in the complete assembly (top-level assembly as well as subassemblies). A part is located first when the cursor hovers over it. If the part is also contained in a subassembly, the subassembly is made available for selection through QuickPick. The selection can also be done from PathFinder.

  • Replace All Occurrences—A button on the command bar in the select parts step selects the occurrences to be replaced. The current Select Occurrences dialog box is then converted into a button to extend the selection to ‘All occurrences’ every time the button is clicked. The selections are displayed in the Select color.
To learn more, see Replacing parts in assemblies.
