Solid Edge ST5


What's new ST5

Jan 19 2013 07:00 AM | Community Administrator in Solid Edge ST5 Views
......
What's New in Solid Edge ST5 ( general overview)

ST5 is now faster and has more synchronous technology integrated throughout the product. More than 1,300 productivity enhancements requested by our customers are included in this release.

Here are the highlights:

Read story →    2 comments    -----

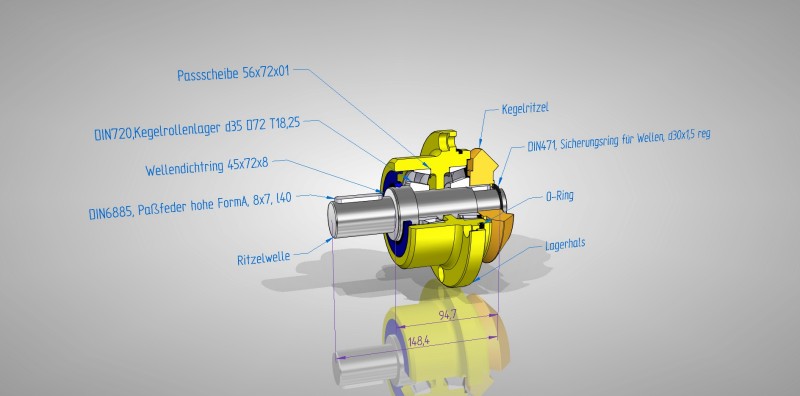

Aspect ratio for PMI callout text

Jan 19 2013 03:29 PM | Community Administrator in Solid Edge ST5

Aspect ratio for PMI callout text The following callout text formatting capabilities are available for model PMI callouts in ST5:Aspect ratioAdjusts text size by changing the font width. The height remains constant.Fit to contentsAutomatically sizes...

Read story →    0 comments    -----    PMI, Dimension, Sketcher

Symmetric dimension edit

Jan 19 2013 03:35 PM | Community Administrator in Solid Edge ST5

The dimension edit box now contains a symmetric dimension option. When editing the dimension value, the end faces move equal distance from the dimension center. To learn more, see PMI dimensions and annotations.

Read story →    0 comments    -----    PMI, Dimension, sketcher

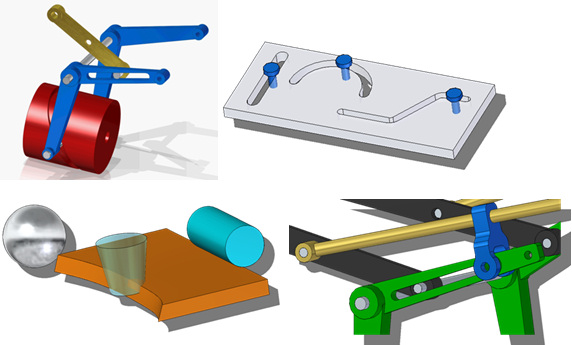

Large assembly modes

Jan 19 2013 02:42 PM | Community Administrator in Solid Edge ST5

Assemblies which were considered large several years ago are easily manipulated using current computer hardware. You can easily load an assembly of up to 200 components with all the data available, yet achieve good display quality. Now you can customi...

Read story →    0 comments    -----    large assembly

Assembly enhancements

Jan 20 2013 09:26 AM | Community Administrator in Solid Edge ST5

These enhancements were made in the Assembly environment in Solid Edge ST5. The changes apply to all assembly models. Hold the CTRL key to open in a new window Assembly relationship enhancements Barrel cam assembly relationship Large assembly modes Te...

Read story →    0 comments    -----    assembly

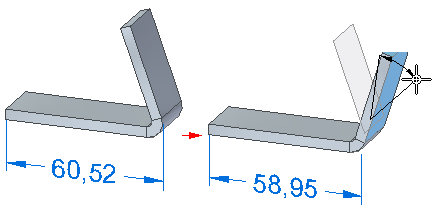

Dimensioning to sheet metal bends enhanced

Jan 19 2013 03:33 PM | Community Administrator in Solid Edge ST5

The placement dimensions to sheet metal bends is enhanced to take into account the dimension’s position relative to a bend and automatically provides the best solutions in QuickPick. The solution can do one of the following: Layer face intersection Ben...

Read story →    0 comments    -----    Sheet metal

PMI enhancements (overview)

Jan 19 2013 03:16 PM | Community Administrator in Solid Edge ST5

PMI enhancements These enhancements were made to PMI dimensions and annotations in Solid Edge ST5. Hold CTRL key to open the link in a new page Aspect ratio for PMI callout text Dimensioning to sheet metal bends enhanced Symmetric dimension edit PMI...

Read story →    0 comments    -----    PMI


Piping and frame enhancements

Jan 19 2013 03:14 PM | Community Administrator in Solid Edge ST5

Piping and frame enhancements Enhancements have been made to piping and frames.The display of handles has been enhanced to make it easier to locate points when editing frames, pipes, and curves. New commands make it easier to edit pipes and frames....

Read story →    0 comments    -----    assembly, frame

Barrel cam assembly relationship

Jan 19 2013 02:55 PM | Community Administrator in Solid Edge ST5

Barrel cam assembly relationship Now you can use the Cam command to easily model a barrel cam. The cam relationship allows follower geometry to follow chained curves, such as sketch geometry wrapped around a cylinder. Characteristics of the chain of c...

Read story →    0 comments    *****    assembly, relationships


Insert assembly copy

Jan 19 2013 02:39 PM | Community Administrator in Solid Edge ST5

Insert assembly copy The Insert Assembly Copy command inserts the top-level of one assembly into another assembly. All top-level components in the parent assembly are considered top-level components in the child assembly. The command selects top leve...

Read story →    0 comments    -----    assembly
