Smart Dimension command

Smart Dimension

Posted Image

Places a dimension on any single element, between any two elements, or between elements in different drawing views of the same model. The dimension types that are available with the Smart Dimension command depend on the elements you select.
When placing dimensions between drawing views, the views must share the same view plane. For example, you can add a dimension between an edge in a front view and an edge in a detail view with the same front orientation, but not between a front view and a side view.<p>

Selecting elements
You can use Smart Dimension to place a dimension on the following single elements:
  • Length and angle of a line
    Posted Image
  • Radius and diameter of a circle
    Posted Image
  • Length, angle, radius, and diameter of an arc
    Posted Image
  • Radius of an ellipse or curve
    Posted Image
You can also use Smart Dimension to place a dimension between any two elements, such as:
  • Between two linear elements
    Posted Image
  • Between two circular elements
    Posted Image
Using keyboard options

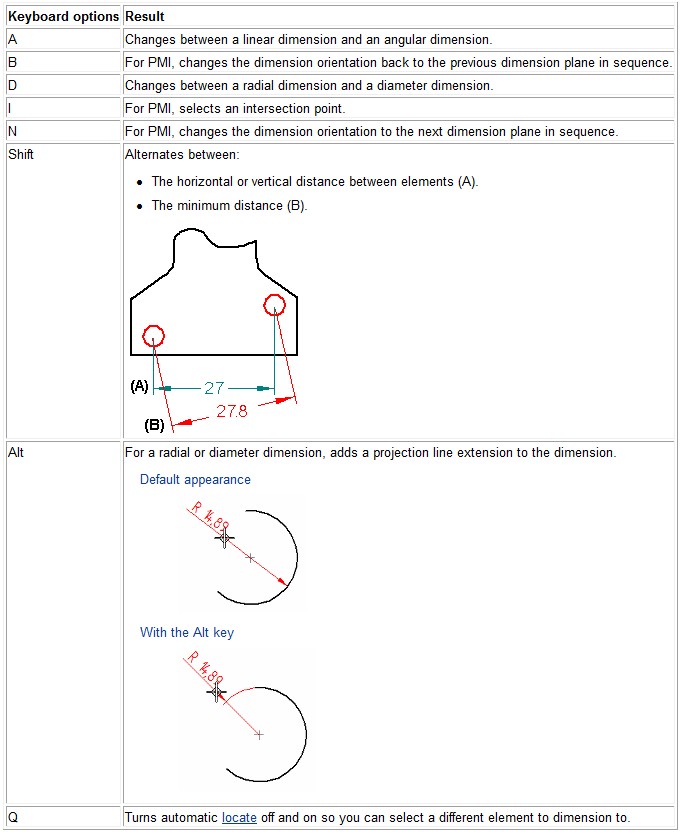

Before you click to place the dimension, you can use the following keys to affect the dimension that is created. The options that are available depend upon what, and how many, elements you select. Refer to the specific prompts displayed on PromptBar as you select elements.

Posted Image


Specifying dimension format and appearance
Use the Smart Dimension command bar to format all aspects of the dimension before you place it. For example, you can:
  • Place a class fit dimension by first selecting Class from the Dimension Type list, and then selecting the class fit dimension type from the Type list.
  • Specify additional dimension text or symbols by selecting the Prefix button to open the Dimension Prefix dialog box.
  • Adjust the round-off of all dimensions and tolerance values by selecting the Advanced Round-off button to open the Round-off dialog box.
You can use the Properties command to open the Dimension Properties dialog box to specify other aspects of dimension formatting. For example, you can specify the length and size of dimension lines and projection lines (on the Lines and Coordinate tab), and the gap between the dimension text and the dimension line (on the Spacing tab).

Adding jogs
You can use Alt+click to add one or more jogs to the horizontal or vertical dimension projection lines of linear, diameter, and distance between dimensions created with the Smart Dimension command.
Posted Image
You can remove a jog on an existing dimension by holding the Alt key while you click a jog key point, and you can remove all jogs on a selected dimension line or projection line using the Jog button on the command bar.
You also can drag the segment or the handle points created by the jog to change the length and orientation of the jog lines.
