View tab, Solid Edge Options dialog box (Draft)

Display As Printed

Displays the document as paper relative (WYSIWYG) or view relative.

Window

Controls the window display.

Horizontal Scroll Bar

Displays the horizontal scroll bar of the active window.

Vertical Scroll Bar

Displays the vertical scroll bar of the active window.

Sheet Tabs

Displays the sheet tabs of the active drawing sheet.

Zoom Tool

Sets the behavior of the mouse buttons when the Zoom Tool is active.

Left Click

Specifies what happens when you click the left mouse button.

Right Click

Specifies what happens when you click the right mouse button.

Left Drag

Specifies what happens when you hold down the left mouse button while moving the mouse.

Right Drag

Specifies what happens when you hold down the right mouse button while moving the mouse.

Show drag rectangle when full display time exceeds ___ (msecs)

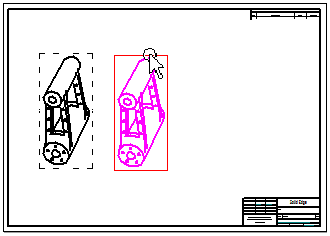

Specifies that drawing view geometry is displayed while moving (dragging) a drawing view, unless it takes longer than the specified time to move it. The default time limit is 200 milliseconds.

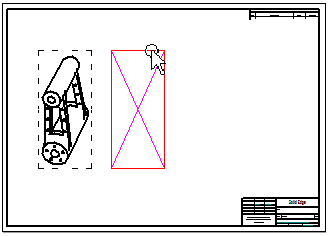

When the time limit is exceeded, an empty rectangle that represents the drawing view boundary is displayed instead of the drawing view geometry.

Drawing views with complex geometry take longer to move than do those with simple geometry. You can adjust this option to compensate for computer speed and display quality.

Tip:

If you never want to show the geometry when you move the drawing view, set this value to 0.00 milliseconds.

Display sheet number in tabs

Displays only the sheet number on the sheet tab. Working sheets and background sheets are numbered independently.

This option is useful when there are so many sheets in the sheet tray that you have to scroll to find them, or when long sheet tab names make it difficult to identify a specific sheet.

Display sheet name in tabs

Displays only the sheet name on the sheet tab.

Example:

Sheet1, Sheet2, Sheet3 for working sheet

A4-Sheet, A3-Sheet, A2-Sheet for background sheets

Display sheet number and name in tabs

Displays the sheet number in front of the sheet name on the tab.

Sheet number and name separator

Specifies one or more text characters to display on the sheet tab between the sheet number and name. The default character is the dash surrounded by spaces ( - ).

Example:

Working sheet numbers and names

1 - Sheet1

2 - Sheet2

Background sheet numbers and names

1 - A4-Sheet

2 - A3-Sheet

Number sheet groups separately

When deselected, all working sheets and table sheets in the sheet tab tray are numbered consecutively. For example, 1, 2, 3, 4, 5.

When selected, table sheets are numbered separately from other working sheets that contain drawing views. For example, if there is one working sheet and four table sheets, then they are numbered 1, followed by 1, 2, 3, 4.

Also specifies that the table sheets generated for one table are numbered separately from the table sheets generated for a different table, for example, the first table sheet group is numbered 1, 2, 3, and the second table sheet group is labeled 1, 2.

Example:

Table sheet numbers and names

A document contains two tables generated automatically using the Create new sheets for table option on the Location Tab in the Table Properties dialog box. Table 1 generates three tables sheets, and Table 2 generates two table sheets. When both the sheet number and sheet name are displayed, the sheet tabs in the tray are labeled as follows:

Table sheets added to the sheet tray

Sheet tab label

1

1-Table 1:1

2

2-Table 1:2

3

3-Table 1:3

4

1-Table 2:1

5

2-Table 2:2
