Revolve Command
Revolve Command

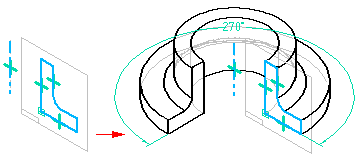

Constructs a protrusion by revolving a profile.
Note:
When constructing a revolved protrusion using more than one profile, all the profiles must be closed. All profiles must share a common axis of revolution.
You can define a non-symmetric extent for a revolved protrusion feature. For example, you can specify 180 degrees for direction 1, and 75 degrees for direction 2.
When working with a weldment assembly, you can use this command to construct an assembly feature to define weld bead material. For more information, see the Weldments in Assemblies Help topic.
